ROUSH S650 MUSTANG PHASE 2 SUPERCHARGER | 810 HP

FEATURES AND BENEFITS SUMMARY

• Boost your 2024-2025 Mustang to 810 Horsepower and 630 lbs-ft of torque
• Dual front inlet, front drive, TVS R2650 supercharger with optimized, high flow inlet port for ultimate airflow capability

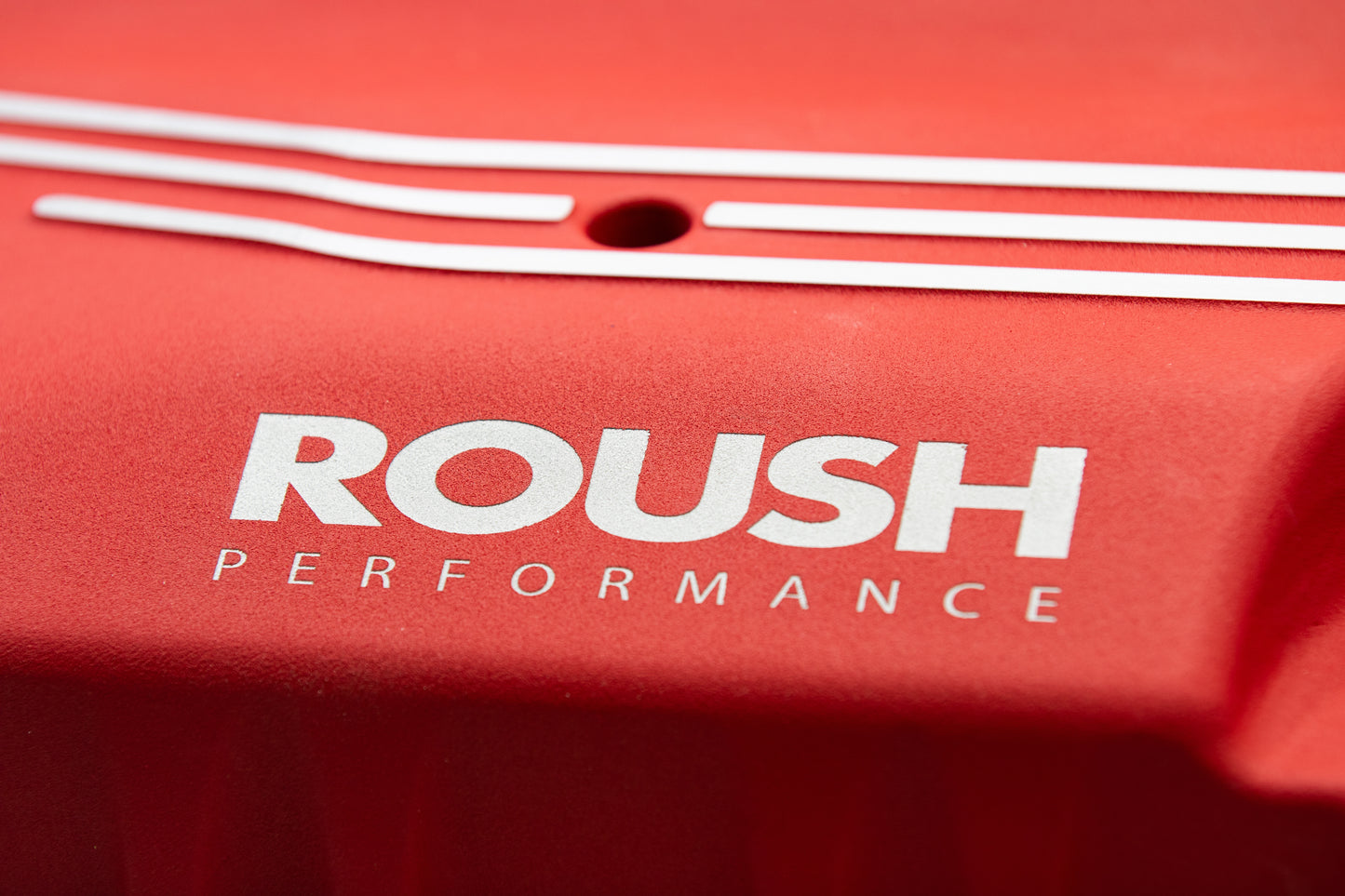

• Unique Roush Red head unit
• Reuses stock 2x 80mm throttle bodies; retains symmetrical appearance and allows for reuse of stock induction components
• Inverted design allows for large, high-efficiency, dual intercoolers for excellent heat transfer and lower intake air temperatures
• High flow, dual cone fuel injectors with optimized director plates for ideal injector targeting
• Custom, billet fuel rails provide maximum flow with minimum restriction, while also ensuring correct injector orientation every time
• Custom FEAD design and hardware allow for supercharger belt to run closer to the engine to reduce load on the crankshaft for ultimate reliability and durability
• Large front heat exchanger provides the lowest possible intercooler temperatures while minimizing restriction to the stock cooling module; custom design for ease of installation – does not require removal of the vehicle fascia (less install time, less risk of damage)
• Custom degas bottle provides huge volume and eliminates coolant aeration for ultimate cooling capacity
• High flow Bosch PCE intercooler pump
• All hoses are custom-formed for ultimate ease of installation and underhood appearance
• Kit packages under the factory hood and K-brace with no modifications (K brace does not need to be removed for installation)
• All wiring is plug and play
• Colder heat range, reduced gap, high-quality Ford Performance spark plugs
• Uses Roush Diagnostic Tuning software for best-in-class calibration delivery and diagnostic capability
• Developed in partnership with Magnuson Superchargers, bringing over 50 years of combined supercharger expertise to this kit
• SEMA-certified Emissions Compliant
• 3-year, 36,000-mile parts warranty included; speak to your installing dealer about available MBPI Powertrain Warranty Options (North America Only)
• 2024 50-state CARB EO Legal: EO# D-488-65
• 2025 50-state CARB EO Legal: EO# D-488-66
• *Intakes sold separately, see Part #422334
• NOT SUPPORTED OR COMPATIBLE with EU6.2 regulations

Unleash Your Mustang: Exhilarating Power

Transform your 2024-2025 Ford Mustang into a true beast with the Roush Phase 2 Supercharger Kit. Unleash an extraordinary 810 horsepower and 630 lbs-ft of torque, propelling your driving experience to new heights. This kit boasts a dual throttle body, front inlet, front drive, dual intercooled, inverted R2650 system with an 84mm pulley, peaking at 13 PSI boost at 7,500 RPM. Revel in the unparalleled power, drivability, and performance that will make every drive an exhilarating experience.

We achieved a 10.33 second 1/4 mile at 136 MPH and 0-60 2.88 seconds with a 1.49G acceleration force on a stock car with this supercharger and slicks on a prepped track* (10R80 Automatic Transmission, 3.55 rear gear ratio).

*Power figures are based on optimal conditions using 93-octane fuel. Actual results may vary depending on octane, intake air temps, humidity, manifold charge temps, gearing, wheel/tire combination, and the type of dynamometer used.

Innovation in Dual Throttle Bodies

Experience the future of performance with our dual throttle body supercharger kit. This revolutionary design sets a new benchmark, providing up to 34% more throttle area compared to industry competitors. The enhanced airflow and improved throttle response deliver a smoother, more responsive driving experience, redefining what you expect from your Mustang.

Enhanced Cooling: Optimal Performance

Engineered with an inverted design, this advanced supercharger system includes twin charge air coolers that significantly enhance cooling capacity. This ensures your engine maintains peak efficiency, even under extreme conditions. Whether on the track or street, your Mustang will perform consistently, thanks to superior cooling that prevents heat soak and maximizes performance.

Advanced Fuel System for Maximum Flow

The S650 Roush Mustang Phase 2 Supercharger Kit includes high-flow, dual cone fuel injectors with optimized director plates for ideal injector targeting. Custom billet fuel rails ensure maximum flow with minimum restriction, providing the reliability and performance you expect from Roush Performance. This advanced fuel system is designed for ultimate power and efficiency.

EATON TVS Technology: Premium Internals

The Roush Phase 2 Supercharger Kit features premium EATON TVS technology, renowned for its reliability and efficiency. These top-tier internals are built for extreme performance, ensuring your Mustang can handle the demands of both street and track driving. Trust in the durability and quality of EATON TVS technology, designed to deliver exceptional power and longevity.

Engineered for Reliability and Durability

Custom Front End Accessory Drive (FEAD) design and hardware allow the supercharger belt to run closer to the engine, reducing load on the crankshaft for improved reliability and durability. The custom degas bottle eliminates coolant aeration, providing huge volume for ultimate cooling capacity. All components are engineered to fit seamlessly under the factory hood and K-brace with no modifications required.

Simple, Quick Installation

Enjoy a straightforward installation process with a design that requires no modifications to the K member or removal of the front fascia for the front mount or low-temperature radiator. With our comprehensive installation guide and the right tools, you’ll have your supercharger kit installed in no time, ready to unleash the full potential of your Mustang.

Designed for ease of installation, the kit reuses stock 2x 80mm throttle bodies, retains symmetrical appearance, and allows for the reuse of stock induction components. All hoses are custom-formed for the ultimate ease of installation and underhood appearance. The high-flow Bosch PCE intercooler pump and plug-and-play wiring ensure a straightforward installation process.

Simplified Tuning: Quick and Easy

Streamline your tuning process with our easy-to-use Roush Diagnostic Tool (RDT) Software. After installation, simply connect to your vehicle’s OBD II port and start the flash process. All you need is a laptop running RDT software and an SAE J2534 Communication Device. This efficient tuning method allows you to quickly optimize your Mustang’s performance, unlocking the full potential of your supercharger kit.

Bold Aesthetics: Stand Out from the Crowd

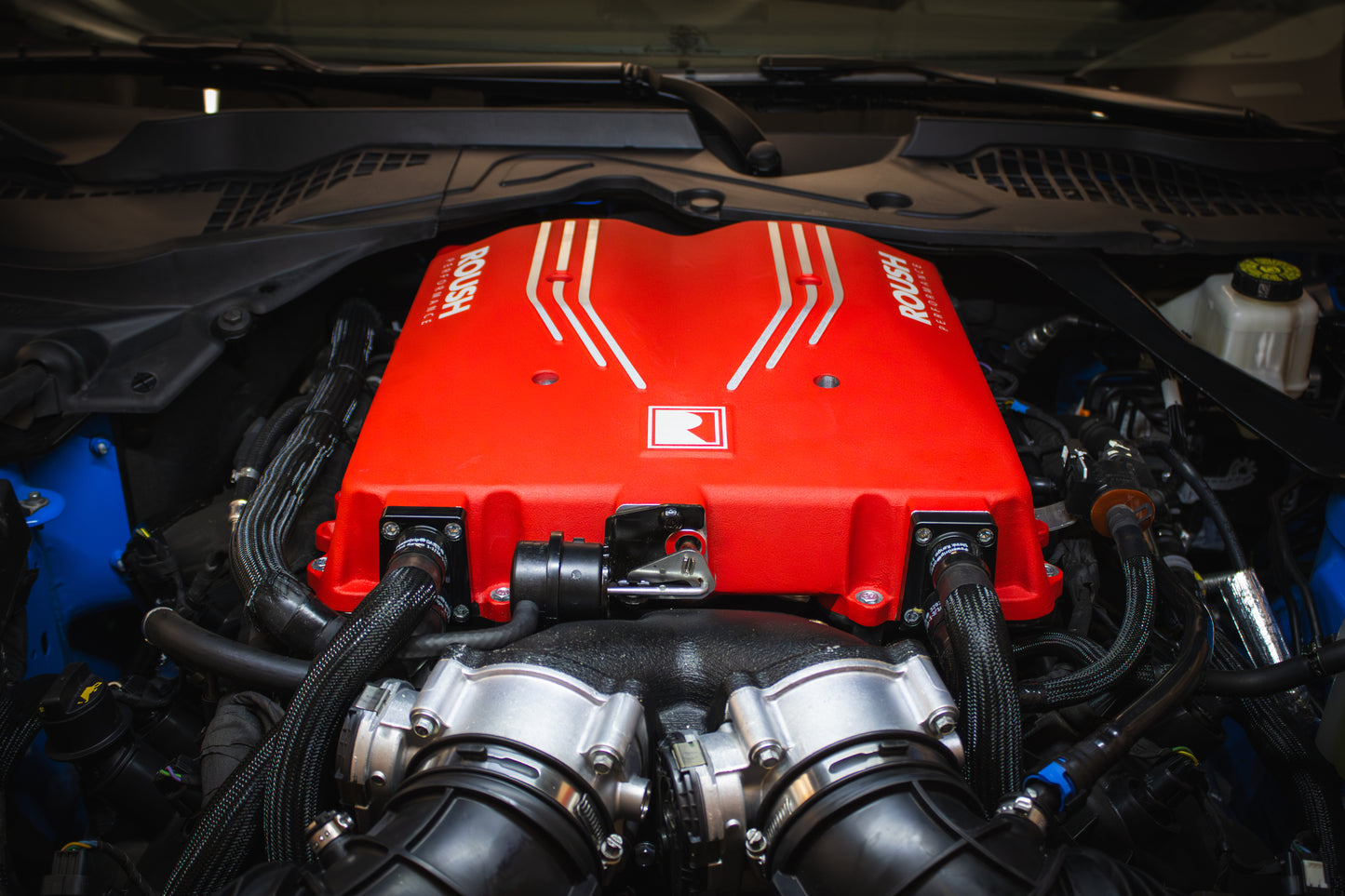

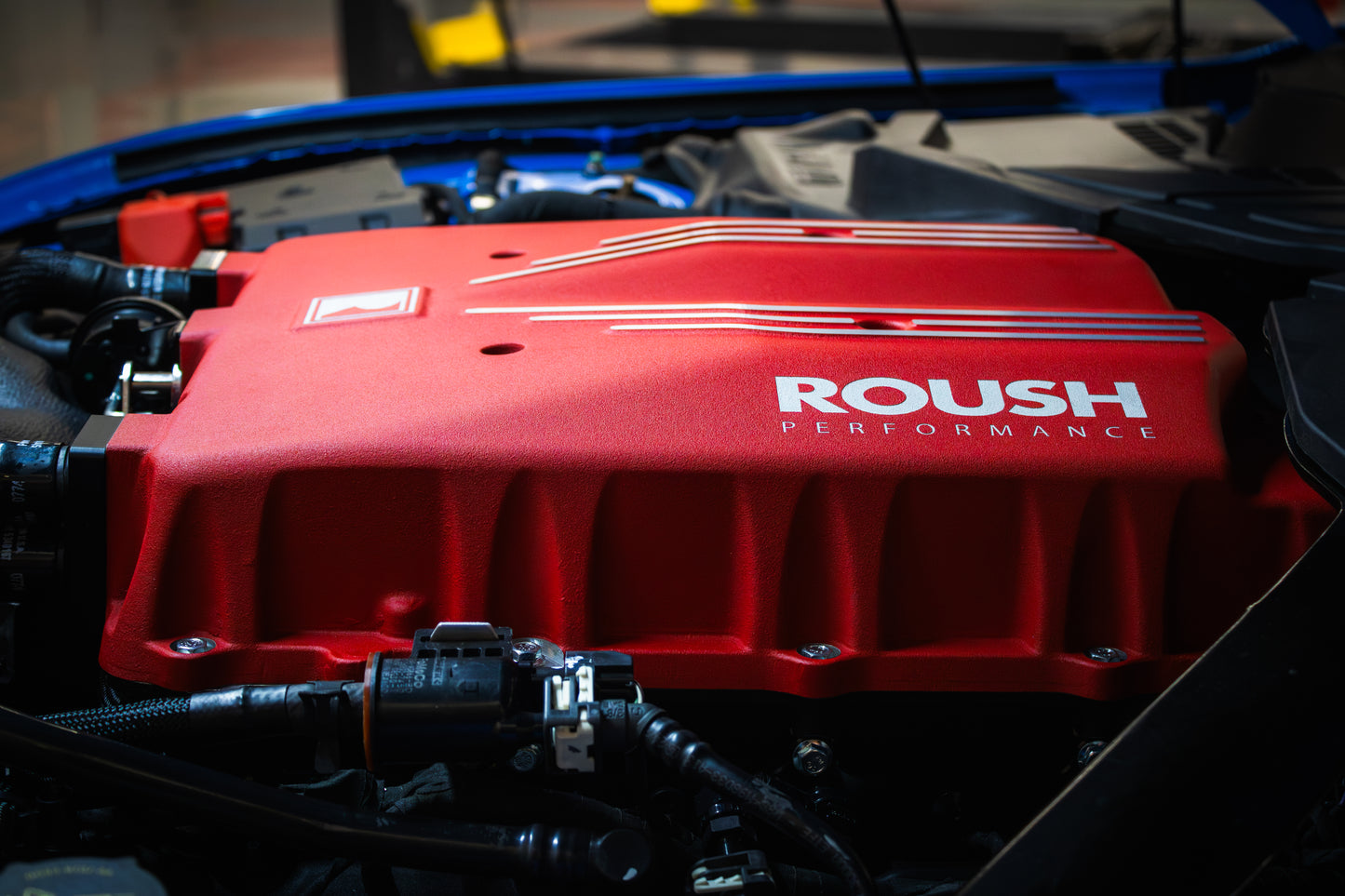

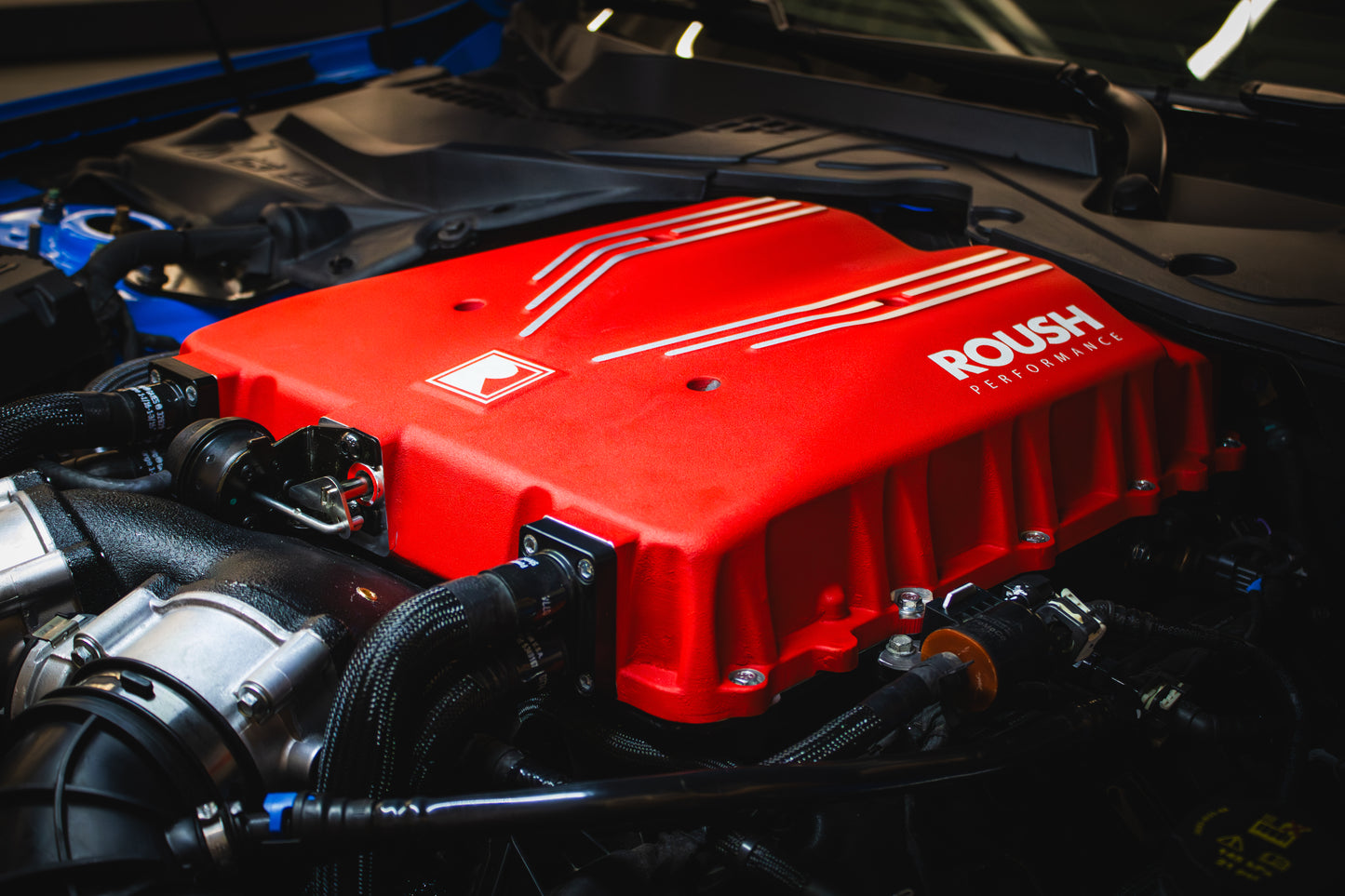

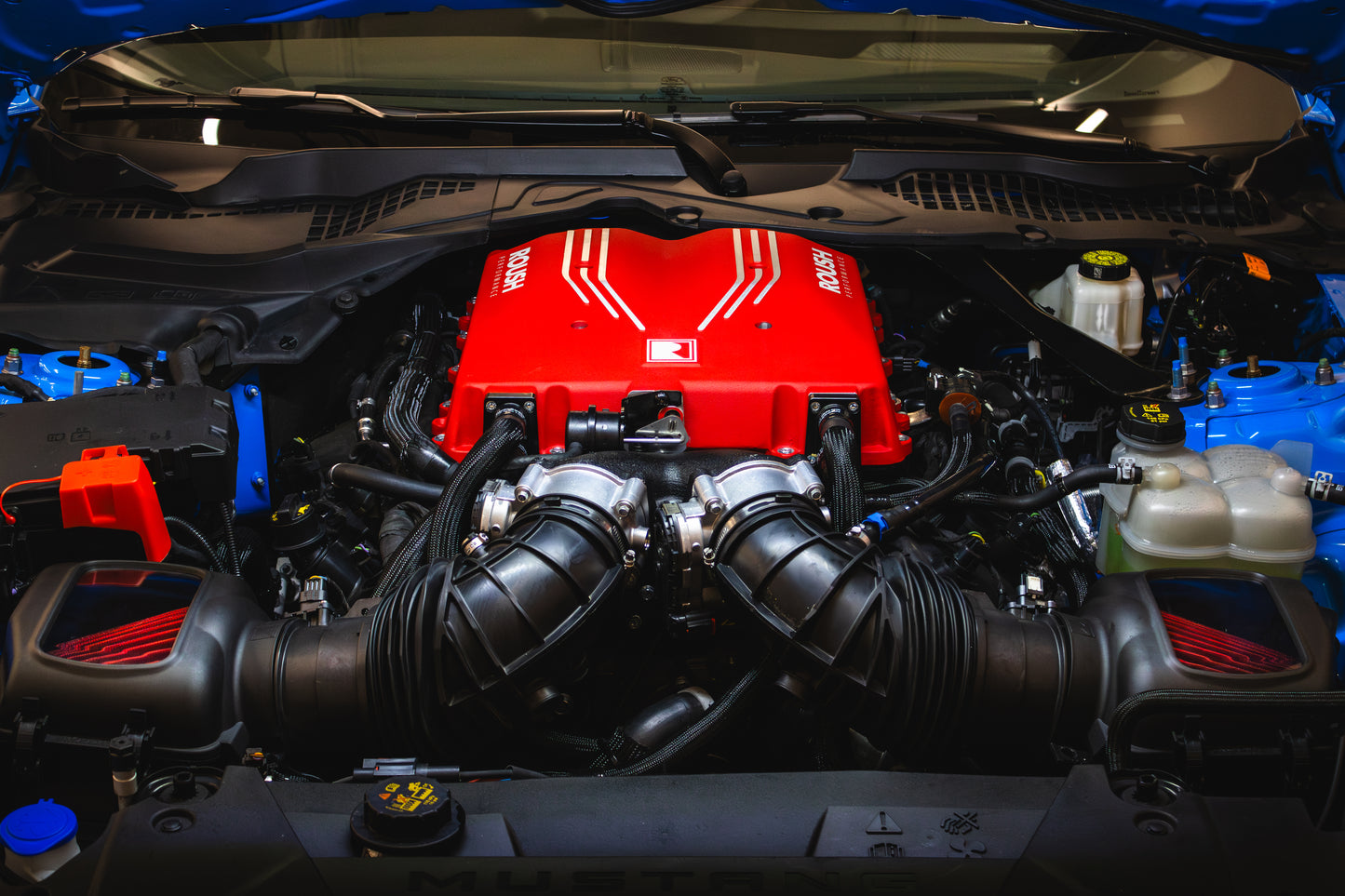

Open your Mustang’s hood to reveal the striking Roush Red painted head unit and twin throttle bodies. This bold aesthetic not only signifies the formidable performance under the hood but also commands attention at every turn. Your Mustang will make a statement wherever you go.

Unmatched Expertise: Decades of Knowledge

Benefit from over 50 years of combined supercharger technology expertise from Roush Performance and Magnuson. Our engineers have meticulously crafted this supercharger kit to deliver superior power and reliability, drawing on decades of innovation and proven performance. Trust in the unparalleled expertise that comes with Roush and Magnuson’s legacy of excellence.

Roush Performance & Magnuson: A History of Success

Roush Performance and Magnuson’s partnership has a storied history of success, from the iconic 2001-2004 Stage 3 Mustang to the 2005-2009 Mustang projects. These collaborations have set the standard for performance and reliability. The new supercharger kit continues this legacy, ensuring your Mustang is equipped with the best performance enhancements available.

Warrantied Assurance: Peace of Mind

Each Phase 2 kit comes with a limited parts warranty*, providing peace of mind and ensuring quality and reliability. Our commitment to excellence means you can drive with confidence, knowing that your investment is protected. For more details, visit our warranty page and discover the assurance that comes with Roush’s dedication to quality.

*View our warranty details here.

Emissions Compliant

Rest assured knowing that the 2024-2025 Roush Mustang Phase 2 Supercharger Kit is SEMA-certified emissions compliant AND 50-state CARB EO compliant, meeting the highest standards for environmental performance.

What are you waiting for?

Don’t miss this opportunity to elevate your Mustang with the 2024-2025 Roush Mustang Supercharger Kit. Embrace the exceptional power, performance, and prestige that only Roush Performance can offer. Join the ranks of true performance enthusiasts and experience the thrill of driving a Mustang that stands out from the rest.
